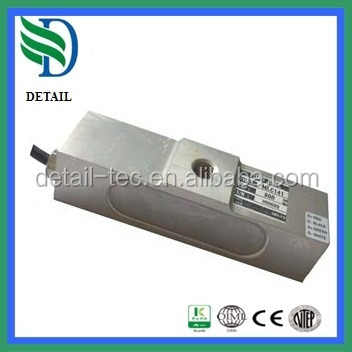

DLC141 elevator overload, lifting weight limiter load cell
Model: DLC141 Category: Bridge load cell Range: 800kg Dimension: 130*33*28mmMaterial: Alloy steel,stainless steel Application: Elevator overload, Lifting weight limiter load cell Characteristic: Elevator overload sensor | |||
PIC REF | |||
Parameters | |||
comprehensive error: | 0.05%FS | output resistance: | 350±5Ω |
Rated output: | 2±0.05mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.05%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.05%FS | compensated temp: | -10~+40℃ |
Repeatability: | 0.03%FS | use temperature: | -20~+55℃ |
Creep: | 0.03%FS/10MIN | temp effect on zero: | 0.05%FS/10℃ |
Zero balance: | ±1%FS | Temp effect on span: | 0.05%FS/10℃ |
Input resistance: | 450±10Ω | defend grade: | IP66 & IP68 |
Price, Package and Service for DLC141 elevator overload, lifting weight limiter load cell
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
