Name: 0.0012Â ± % of rated output/â Weight sensors canister c3 column load cell 10t 20t 30t 40t apply for truck scale
Brand: 0.0012Â ± % of rated output/â Weight sensors canister c3 column load cell 10t 20t 30t 40t apply for truck scale
SKU: BTY-MF
Price: 1 USD
Availability: InStock
Rating: 4.5 (124 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: BTY-MF

Usage: Weighing Appartaus Truck Scales

Theory: Resistance Sensor

Output: Analog SENSOR

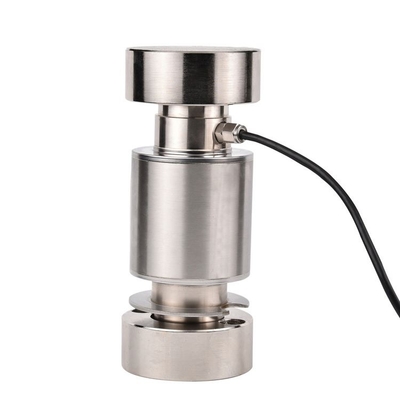

Product Name: Column Load Cell 10t 20t 30t 40t Aplly For Truck Scale

Rated Load: 10-60t

Rated Output: 2.0Â±0.1%mV/V

Combined Error: 0.015Â±% Of Rated Output

Temperature Effect On Sensitivity: 0.0012Â±% Of Rated Output/â„ƒ

Temperature Effect On Zero Balance: 0.0008Â±% Of Rated Output/â„ƒ

Zero Balance: 1Â±% Of Rated Output Î© (Ohms)

Input Resistance: 775Â±5Î© (Ohms)

Material Of Elastomer: Alloy Steel,stainless Steel

Basic Infomation

Model Number: BTY-MF

Payment & Shipping Terms

Packaging Details: Package of Column load cell 10t 20t 30t 40t aplly for truck scale :Neutral packing

Supply Ability: 8000 Piece/Pieces per Month Column load cell 10t 20t 30t 40t aplly for truck scale

Product Description

Item/Parameter	C3	Unit
Rated load (Emax)	10-60	t
Maximum numbers of load cell verification Intervals	3000	d
Minimum numbers of load cell verification Intervals	0.01	% of rated load
Rated output	2.0±0.1%	mV/V
Combined error	0.015	±% of rated output
Temperature effect on sensitivity	0.0012	±% of rated output/°C
Temperature effect on zero balance	0.0008	±% of rated output/°C
Zero balance	1.0	±% of rated output/
Input resistance	775±5	Ω (Ohms)
Output resistance	702±2	Ω (Ohms)
Insulation resistance	≥5000	MΩ(Mega-Ohms)
Safe overload	150	% of rated capability
Ultimate overload	300	% of rated capability
Operating temperature range	-20~+70 / -20~+160	C/F
Recommend excitation	8~15	V(DC or AC)
Maximum excitation	24	V(DC or AC)
Material of elastomer	Alloy steel,stainless steel
Protection class	IP67/IP68
