Products Specification:
Dimensions Unit: mm:
|
Cap/Size |
L |
L1 |
L2 |
L3 |
L4 |
D |
|
25-50kg |
152 |
22 |
12 |
52 |
42 |
8.5 |
|
100-500kg |
168 |
28 |
19 |
62 |
48 |
11 |
|
750~1000kg |
210 |
40 |
22 |
70 |
56 |
13 |
Technical Parameter:
|
Rated Load: |
10/20/30/50/75/100/150/200/250/300/500/700/1000kg |
||
|
Sensitivity: |
(2.0±0.1%) m V/V |
Operating Temp. Range: |
-10~+70℃ |
|
Combined Error: |
±0.02% F.S |
Maximum Safe Over Load: |
150%F.S |
|
Creep Error(30min): |
±0.03% F.S |
Ultimate Over Load:: |
300%F.S |
|
Zero Balance: |
±1% F.S |
Recommend Excitation Vol.: |
10~12V DC |
|
Temp. Effect On Zero: |
±0.02% F.S/10℃ |
Maximum Excitation Vol.: |
15V DC |
|
Temp. Effect On Span: |
±0.02% F.S/10℃ |
Sealing Class: |
IP68 |
|
Input Resistance: |
385±5Ω |
Element Material: |
Alloy Steel, Stainless Steel |
|
Output Resistance: |
351±2Ω |
Cable: |
Length=L:3m |
|
Insulation Resistance: |
≥5000MΩ |
Citation: |
GB/T7551-2008/ OIML R60 |
|
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
||

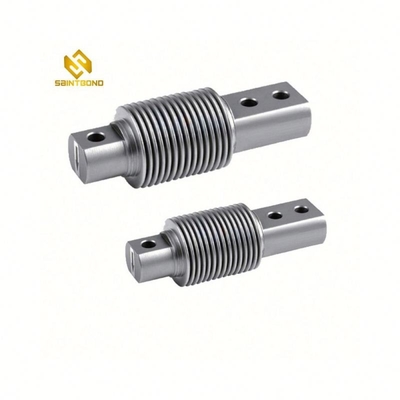

LC338 Germany Load Cell,Bending Beam Low Cost Load Cell,Micro Load Cell 20Kg
| Product Name | LC338 Germany Load Cell,Bending Beam Low Cost Load Cell,Micro Load Cell 20Kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
