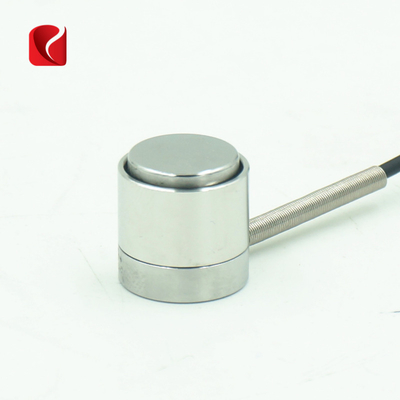

Specifications | ||
Capacity | 10,20,50,75,100,150kN | |
Rated output | 2.0±10%mV/V | |
Zero balance | ±0.05mV/V | |
Non-linearity | 0.05%F.S. | |
Hysteresis | 0.2%F.S. | |
Repeatability | 0.2%F.S. | |
Creep(30min) | 0.2%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 380±20Ω | |
Output impedance | 350±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -20~80℃ | |
Safe overload | 200%F.S. | |
Ultimate overload | 300%F.S. | |
Cable size | φ2/φ3×4000mm | |
Material | stainless steel | |
Weight approx. | 0.1kg | |
- Load Direction -
- Wiring Code -
