Name: Accuracy: C3 Output: 2.0mv/V Waterproof Rate: High Precision IP67 1-3t Alloy Steel Shear Beam Structure Floor Scale Single Beam Load Cell
Brand: Accuracy: C3 Output: 2.0mv/V Waterproof Rate: High Precision IP67 1-3t Alloy Steel Shear Beam Structure Floor Scale Single Beam Load Cell
SKU: SQC-J
Price: 1 USD
Availability: InStock
Rating: 4.7 (133 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: SQC-J

Usage: Weighing Appartaus Truck Scales

Theory: Wheatstone Principle

Output: 2.0mV/V

Product Name: Single Shear Beam Load Cell

Type: Double Beam Type Load Cell

Color: Golden

Features/Description: Accuracy:C3 Output:2.0mv/V Waterproof Rate:IP67

Characteristic: Convert Electrical Signal To The Force Signal

MEAS: 41*21*23cm

Production Time: 35days

Material: Alloy Steel Or Stainless Steel

Form Of Sale: OEM Direct Sales

Market: Global India Malaysia South Africa South American Brazil Guatemala

Basic Infomation

Model Number: SQC-J

Payment & Shipping Terms

Packaging Details: Package of single shear beam load cell:Neutral packing

Supply Ability: 8000 Piece/Pieces per Month Single shear beam load cell

Product Description

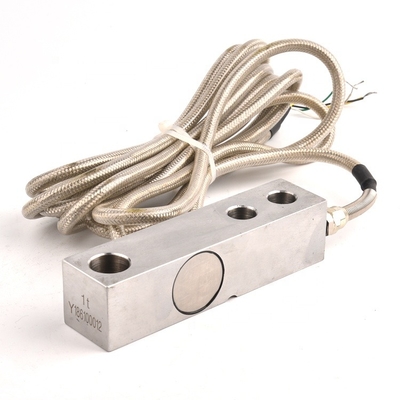

1-3t high-precision alloy steel structure floor scale single shear beam load cell

Item/Parameter	C3	Unit
Rated load (Emax)	1-3	t
Maximum numbers of load cell verification Intervals	3000	d
Minimum numbers of load cell verification Intervals	0.01	% of rated load
Rated output	2.0±0.1%	mV/V
Combined error	0.015	±% of rated output
Temperature effect on sensitivity	0.0012	±% of rated output/°C
Temperature effect on zero balance	0.0008	±% of rated output/°C
Zero balance	1.0	±% of rated output/
Input resistance	385±5	Ω (Ohms)
Output resistance	351±2	Ω (Ohms)
Insulation resistance	≥5000	MΩ(Mega-Ohms)
Safe overload	150	% of rated capability
Ultimate overload	300	% of rated capability
Operating temperature range	-20~+70 / -20~+160	C/F
Recommend excitation	8~12	V(DC or AC)
Maximum excitation	18	V(DC or AC)
Material of elastomer	Alloy steel,stainless steel
Protection class	IP67/IP68
