PRESSURE SENSOR Spoke Pull Pressure Load Cell High Accuracy Weight Load Cell Hopper Extended Range 100 Tons

1.0 Pieces
MOQ
PRESSURE SENSOR Spoke Pull Pressure Load Cell High Accuracy Weight Load Cell Hopper Extended Range 100 Tons
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Digital Sensor
Description: Hybono
Output Sensitivity: 2.0±0.05mV/V
Nonlinear: ±0.03≤%F.S
Lag: ±0.03≤%F.S
Repeatability: ±0.03≤%F.S
Creep: ±0.03≤%F.S
Zero Output: ±1≤%F.S
Input Resistance: 750±20Ω
Output Resistance: 700±5Ω
Amplifier Type: Analog Output
Technology: Resistive
Voltage - Supply: 10-15V
Operating Temperature: -20°-80°C
Humidity Range: -20C~+80C
Size / Dimension: 20X20X10 Cm
Measuring Range: 0-500T
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard strong export carton box
Supply Ability: 100 Piece/Pieces per Week
Product Description

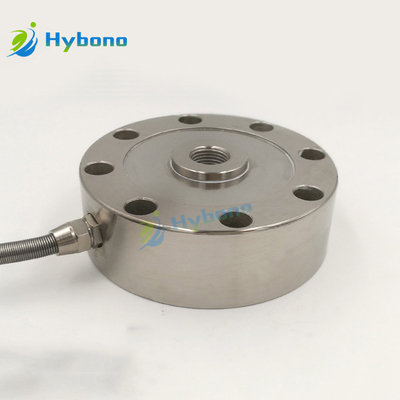

Electronic belt scales pancake load cell

Features and uses

The sensor adopts a spoke-type elastic body pull structure, which has the characteristics of low profile, anti-eccentric load, high precision, good strength, easy installation, good symmetry of tension and compression output.

Widely used in industrial systems for force measurement, crane scales, railroad scales, hopper scales and other weighing and measuring industrial automation measurement and control systems.

Wiring

Wiring information:

Red: Input (+)

Black: Output (-)

White: Input (-)White

Green: Output (+)
