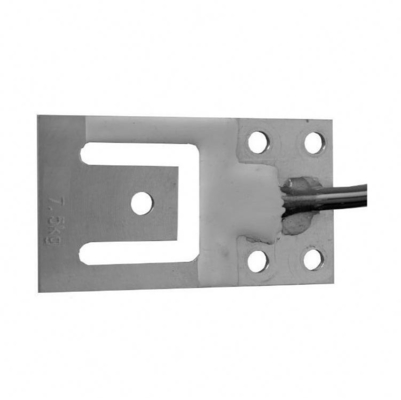

Features:
♦ 4 conductor flat ribbon cable;
♦ Cable diameter: Ø1.2mm;
♦ Standard cable length: 1.0m;
|
Cap. |
L1 |
L2 |
L3 |
L4 |
W1 |
W2 |
H |
D1 |
D2 |
|
7.5kg |
70 |
4.9 |
14 |
28 |
39 |
27.8 |
2 |
5.1 |
5.1 |
Technical Parameter:
|
Accuracy class |
OIML R60 C3 |
|
Output sensitivity ( = FS ) |
1.0 ± 0.1mV/V |
|
Maximum capacity ( Emax ) |
7.5kg |
|
Max. number of load cell intervals |
3000nLC |
|
Ratio of min. LC verification interval |
7500 Y = Emax/vmin |
|
Combined Error |
≤± 0.023%FS |
|
Minimum dead load |
0Of Emax |
|
Safe overload |
1.5of Emax |
|
Ultimate overload |
3of Emax |
|
Zero balance |
< ± 5.0 %of FS |
|
Excitation, recommended voltage |
5 ~ 15V |
|
Excitation maximum |
18V |
|
Input resistance |
1080 ± 50Ω |
|
Output resistance |
1000 ± 10Ω |
|
Insulation resistance |
≥5000 ( at 50VDC )MΩ |
|
Compensated temperature |
-10 ~+40°C |
|
Operating temperature |
-20 ~ +50°C |
|
Storage temperature |
-35 ~ +80°C |
|
Element material |
Aluminum |
|
Ingress Protection (acc. to EN 60529) |
IP65 |
|
Recommended torque on fixation |
M4: 3Nm |
|
ATEX classification (optional) |
None |
