Force Gauge SOPHX-001 Stainless Steel Ring-Twist Through-Hole Cell Joint Type Through Hole Donut Load Cell

10 Pieces
MOQ
$96.00(10 - 49 Pieces) $76.00(>=50 Pieces)
Price
Force Gauge SOPHX-001 Stainless Steel Ring-Twist Through-Hole Cell Joint Type Through Hole Donut Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SOPHX-001
Type: Load Cell
Usage: Force Measurement
Theory: Resistance Sensor
Output: Analog Sensor
Description: Donut Load Cell
Material: Stainless Steel
Capacity: 5/ 10/ 20/ 30/ 50/ 100kg
Accuracy: C2/C3
Output Sensitivity: 2.0 ± 10%mV/V
Combined Error: ≤± 0.05 F.S.
Safe Overload: 150 %
Zero Balance: < ±1.0 %F.S.
Recommended Voltage: 5 ~ 10V
Insulation Resistance: ≥5000 MΩ( At 100VDC )
Operating Temperature: -20 ~ +80°C
Basic Infomation
Model Number: SOPHX-001
Payment & Shipping Terms
Packaging Details: SOPHX-001 Stainless Steel Ring-Torsion Through-Hole Cells Washer Type Through Hole Donut Load Cell
Product Description
Recommend Products
Product Description

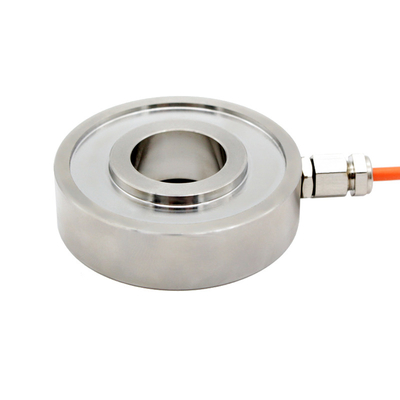

SOPHX-001 Stainless Steel Ring-Torsion Through-Hole Cells Washer Type Through Hole Donut Load Cell
⭐ Made of stainless steel
⭐ Washer load cell
⭐ Compact, flat disc design, small diameter, low overall height
⭐ Completely welded body, central clearance hole
⭐ Thru-hole structure,easy to install ⭐ Suitable for force measurement where space is limited
⭐ Application: testing machine, force measure and control system
Specification
Model Number
SOPHX-001
Capacity
5kg, 10kg, 20kg, 30kg, 50kg,100kg(Can customized capacty and size)
Rated Output
2.0±10% mV/V
Accuracy
0.20%F.S
Linearity
±0.5%F.S
Hysteresis
±0.1%F.S
Repeatibility
±0.1%F.S
Zero Balance
±2%F.S
Comprehensive Error
0.5%FS
Insulation
≥5000MΩ
Temperature range
-20~+80℃
Safe Overload
120%F.S
Ultimate overload
150% F.S
Excitation Voltage
5-10VDC
Water proof grade
IP67
Cable length
dia.2 × 2000 mm, 4 core shield cable
Material
stainless steel
Cable definition
RED:EXC+ /Black:EXC-/Green:Signal +/White:Signal -
Packing & Delivery
SOPHX-001 Stainless Steel Ring-Torsion Through-Hole Cells Washer Type Through Hole Donut Load Cell
♦ Packing:
1* Load cell
packing materials are eco-friendly and really protect your product well. Each item has its own independent foam/sponge/plastic bag
packaging, then packed in a carton
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
