CLY 120 Series Static Spoke Type Tension And Compression Load Cell

1 Set
MOQ
$400.00(>=1 Sets)
Price
CLY 120 Series Static Spoke Type Tension And Compression Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: CLY
Type: Load Cell
Usage: -----, PRESSURE SENSOR
Theory: -----, Resistance Sensor
Output: -----, Digital Sensor
Description: Sensor
Amplifier Type: Standard
Point(%FS/10K): 2±0.1/2±0.2
Output Temperature: 15
Effect(%FS/10K): 120
Output Sensitivity(mV/V): 350
Max. Excitation Voltage(V): ≥5000
Zero Point Drift(%FS): 0.01
Basic Infomation
Model Number: CLY
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 40 Piece/Pieces per Month
Product Description
Load Sensor

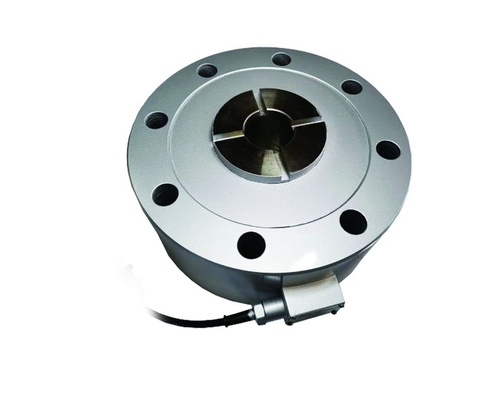

CLY series spoke type tension and compression sensor
Static spoke type tension and compression load sensor in double directions

01 Characteristic

1. Range(capacity):5kN-3000kN 2. All steel structure,solid and
durable 3. Low overall height,strong anti-
lateral force capacity.
4. Tension and compression
appliction,stable and reliable.
5. Fully sealed structure,protection
level:IP66,IP68
02 Applications
Various types of testing equipment


Force measuring
system for industrial
site control
Weighing system

03 Specification





Rated load(kN)

5,10,20
30,50
50,100
200
300
500,600
#1000#2000
#3000
Dime-nsion
H
44
52
70
95
120
120
142
140

H1
40
45
62
85
110
110
122
140

H2
7
10
13
24
37
37
37
52

H3
3
5
6
6
8
8



D(h7)
95
115
190
214
250
280
350h7
400

D1
74
90
164
164
204
234
290
340

D2
23
32
60
82
83
113
150
190

D3(H7)
17
24
30
40
40
50
φ26 counterboreφ38 depth 29
M150*4

L
36
36
50
50
50
50
50
50

B
26
26
36
36
36
36
60
36

B1
3
5
5
6
8
8



G
8×φ9
8×11
8×φ17
8×φ19
8×φ19
8×φ23
12×φ18 counterboreφ26 depth 20
12×φ26




04 Level & allowable error
Load cell level
With stable target
0.02
0.03
0.05
0.1
0.3
0.5
Without stable target
0.02NS
0.03NS
0.05NS
0.1NS
0.3NS
0.5NS
Max. allowable error
Zero point output(%FS)

±2
±5
±10
Zero point drift(%FS)
0.01
0.015
0.025
0.05
0.15
0.25
Repeatability (%FS)
0.02
0.03
0.05
0.1
0.3
0.5
linearity(%FS)
±0.02
±0.03
±0.05
±0.1
±0.3
±0.5
Hysteresis (%FS)
±0.02
±0.03
±0.05
±0.1
±0.3
±0.5
long term
±0.04
±0.06
±0.1
±0.2
±0.6
±1
stability(%FS/month)
±0.02
±0.03
±0.05
±0.1
±0.3
±0.5
Creep / creep recovery(%FS)
±0.02
±0.03
±0.05
±0.1
±0.3

Temperature Effffect of zero
±0.02
±0.03
±0.05
±0.1
±0.3

point(%FS/10K)
2±0.1
2±0.2
Output temperature
15
effffect(%FS/10K)
120
Output senstivity(mV/V）
350





Max. excitation voltage(V)
≥5000





Note
1. Ns- means that the safety assessment has not been carried out:
2. * The project is idenfitied according to customer requirements:
3. # is a load sensor




05 Order type


CLY20-rated load level For example:The model of ordered sensor(measuring range 50kN, class 0.5) is CLY20-50kN.



Packing & Delivery
Our products can be delivered within 5-15 working days after receiving the payment. The products can be shipped by sea, by air, by train, by road, by courier!
