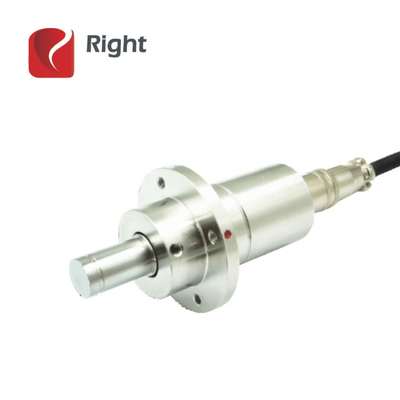

T203 sensor is used to tension testing. With its compact and robust design, this product is very suitable to be used in various applications where compact structure and easy to install.This product capacity ranges from 10 to 200N. Thanks to its high danamic response frequency, this sensor is suitable for fast measurement.
1. Low profile and easy install.
2. Measure both tensile force .
3. High dynamic response frequency, suitable for fast measurement.
4. Made of stainless steel
Specifications | ||
Capacity | 10,20,50,100,200 N | |
Rated output | 2.0±0.02%mV/V | |
Zero balance | ±2% F.S. | |
Non-linearity | 0.1%F.S. | |
Hysteresis | 0.2%F.S. | |
Repeatability | 0.1%F.S. | |
Creep(30min) | 0.1%F.S. | |
Temp.effect on output | 0.03%F.S./10℃ | |
Temp.effect on zero | 0.03%F.S./10℃ | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~40℃ | |
Operation temp range | -30~70℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 300%F.S. | |
Cable size | φ4×1500mm | |
- Load Direction -
- Wiring Code -
