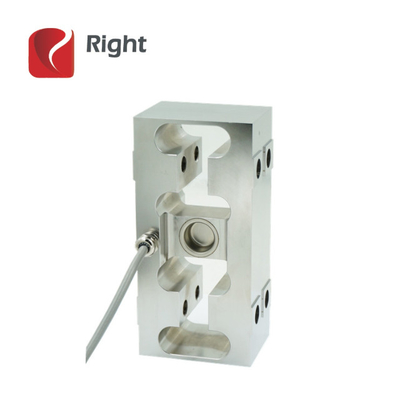

R451 force Load cell is used to measure compressive force. With low profile , this load cell provides accurate weighing performance.
It can be used in electric scales,electric balance, price computing scales and industrial weighing systems.
1. High accuracy.
2. Easy to install.
3. Used in various automated stamping application,IP 68 protection.
4. Stable structure and strong lateral force resistance, mainly suitable for weighing systems such as construction machinery, garbage truck weighing etc.
Specifications | ||
Capacity | 550,880kg | |
Sensitivity | 2.0±0.5%mV/V | |
Zero balance | ±5% F.S. | |
Non-linearity | 0.05%F.S. | |
Hysteresis | 0.05%F.S. | |
Repeatability | 0.05%F.S. | |
Creep(30min) | 0.05%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 350±20Ω | |
Output impedance | 350±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~40℃ | |
Operation temp range | -30~70℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ4.0×350mm | |
Material | Stainless steel | |
Weight approx. | 0.3kg | |
- Load Direction -
- Wiring Code -
