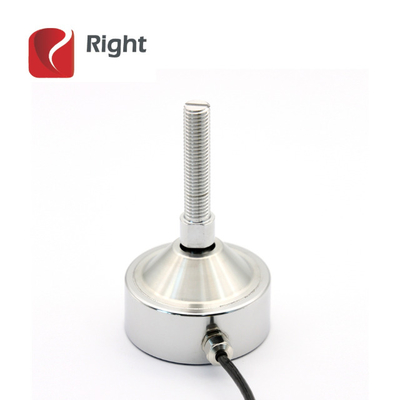

1. Low profile, small deflection, easy installation
2. Made of Stainless Steel and IP 67.
3. Patented products by Right Co., Ltd.
4. Suitable for fast measurement .
Specifications | ||
Capacity | 0.5,1,1.5,2,2.5 t | |
Rated output | 2.0±0.1%mV/V | |
Zero balance | ±0.03mV/V | |
Non-linearity | 0.05%F.S. | |
Hysteresis | 0.05%F.S. | |
Repeatability | 0.02%F.S. | |
Creep(30min) | 0.05%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 780±20Ω | |
Output impedance | 700±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -20~80℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ4×4000mm | |
Material | stainless steel | |
Weight approx. | 0.3kg | |
- Load Direction -
- Wiring Code -
New Product
Compression Force Sensors
Tension & Compression
Force Sensors
Multi-axis Force Sensors
Piezoelectric Sensors
Weighing Load Cells
Weighing Modules
Torque Force Sensors
Amplifiers, AD Modules & Indicators
Changzhou Right Measurement and control system Co., Ltd is a high-tech enterprise which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors. The engineering team has over 15 years 'design and manufacturing experience for load cells. The engineers have profound knowledge about load cell structure, material features as well as manufacturing process applied domestically or oversea.
Right supply all kinds of standard load cells as well as miniature load cells as well as various non-standard torque sensor, tension sensor as well as compression sensors. We also provide system products which includes display indicators, auto-control systems that can be combined with our products to provide our customers with full weighing and measurement solution.
In recent years, Right has introduced advanced equipment and manufacturing process to make continuously improvements on our products. We focus on products innovation and worked tightly with leading companies from different industry and top universities to design high-end products for various application. Our company vision is becoming top supplier in weighing and tension measuring industry.
