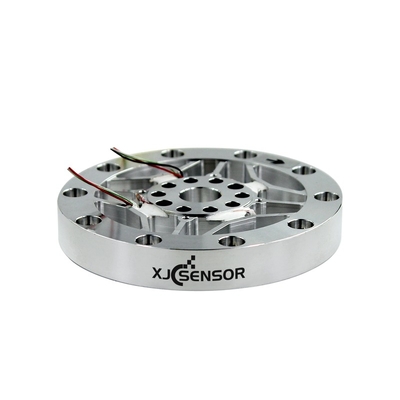

Name: Common Type Digital Load Cell Torque Load Cell Torque Sensor Donut Pressure Sensor
Brand: Common Type Digital Load Cell Torque Load Cell Torque Sensor Donut Pressure Sensor
SKU: XJC-NJ88-H18
Price: 1 USD
Availability: InStock
Rating: 4.6 (187 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: XJC-NJ88-H18

Usage: Torque Load Cell

Brand: Torque Sensor For Collaborative Robot

Warranty: 12 Months

Product Name: XJC-NJ88-H18

Capacity: 10~100NM

Temperature Range: -20~80â„ƒ

Protection Class: IP64

Nonlinearity: <Â±0.1%F.S

Load Cell Material: Aluminum

Output Resistance: 750Â±50Î©

Hysteresis: <Â±0.1%FS

Resolution (Bits): 12 B

Basic Infomation

Model Number: XJC-NJ88-H18

Payment & Shipping Terms

Packaging Details: OEM Reaction Torque Sensor for Robot Arm Packing: Standard exporter carton packing (Other packing requirement accept upon further request )

Supply Ability: 3000 Piece/Pieces per Month

Product Description

XJC-NJ88-H18

1. Resistance strain is a product of sensitive components and integrated circuits
2. High accuracy, stable performance and low-range torque measurement.
3. Easy to install, Static torque meansurement, Connect to doule flanges..
4. Aluminum/ Stainless steel

Capacity	20-100NM	Material	0-10 NM: Aluminum 10-100 NM: Stainless steel
Accuracy	0.1% F.S.	Rated output	2.0±1.5%mV/V
Recommended excitation	5-10VDC	Maximum excitation	15V
Natural frequency	≥1KHZ	Compensated temp range	- 10 ~ 60 ºC
Hysteresis	0.1% F.S.	Operating temp range	- 20 ~ 80 ºC
Repeatability	0.1% F.S.	Insulation	≥5000MΩ/100VDC
Input impedance	750 ± 30Ω	Output impedance	700± 10 Ω
Creep (30min)	0.1% F.S.	Temp effect on output	0.5% F.S. / 10ºC
Zero balance	± 2% F.S.	Temp effect on zero	0.5% F.S. / 10ºC
Safe load limit	120%	Ultimate load limit	200%
Cable size	∅1.6x3m	Life	Full scale more than 1 million times
Wire connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White

Contact us for details>>>

Company profile

XJCSENSOR is a high-tech enterprise with more than 10+ years experience specialized in load celll designing, product R&D, manufacturing, marketing and sevices. We specialize in Torque Sensor, Load Cell, Pressure Transducer, Multi Axis sensor, Tension pick-up.

XJCSENSOR, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance, high dynamic response frequency and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

XJCSENSOR always guidelines of "Customer Oriented, Quality Focused, Professional Service ".

Partners

XJC have BYD, HUAWEI, Foxccon, TTI, CATL etc. third-party inspection and CE, FCC, Rohs, ISO9001 verified.

Certificates

XJC sensor production process includes: scribing and patching strain gauge( without scribing,

the position of the strain gauge is eccentric, might cause uneven force for sensor), zero point, insulation, full temperature compensation process(without this process will cause zero point and sensitivity drift when temperature changing), complete inspections are required after each process is completed, inspection reports will be done based on performance inspections before packaging.

FAQ:

Q: What is your MOQ?
A:Sample order is acceptable.

Q:What is lead time?
A:In stock models will be delivered within 3-5 working days.If the order items are
not in stock,it will be 10-30 working days.

Q:What terms of payment are available ?
A:T/T, L/C, Western Union, Paypal, etc.

Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
We have USD104,000.00 of caution money to assure your orders.

Q: How to place an order ?
A: Please provide us more details, such as: application, measurement range,
output, accuracy, thread type, electric connector and other related parameters.

Q: What is the express delivery?
A: DHL, Fedex, TNT ,EMS, UPS etc.

Q: Warranty
A: Quality guarantee: 12 months.

Q: After-sale service?
A: After you receive our product, if you have any questions or need any
assistance, we can provide you the after-sale service by e-mail, skype,
telephone and WhatsApp etc.
