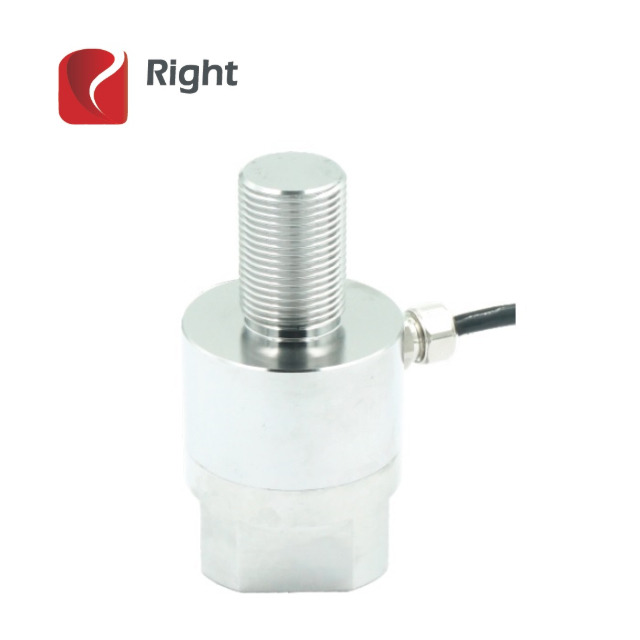

R234 is used to measures tensile force. It's max. capacity can reach 10KN.m. Thanks to its high danamic response frequency, this sensor can provide fast measurement in various applications where tensile and compressive force measurements are required.
1. Low profile and small deflection
2. Measure tensile and compressive force.
3. High dynamic response frequency, suitable for ultrasonic welding equipment
4. Made of stainless Steel or alloy steel.
Specifications | ||
Capacity | 1,2,3,5,10kN | |
Rated output | 1.5±10%mV/V | |
Zero balance | ±0.03mV/V | |
Non-linearity | 0.1%F.S. | |
Hysteresis | 0.1%F.S. | |
Repeatability | 0.1%F.S. | |
Creep(30min) | 0.05%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 780±20Ω | |
Output impedance | 700±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -20~80℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ4×4000mm | |
Material | Stainless steel or alloy steel | |
Weight approx. | 0.15kg | |
- Load Direction -
- Wiring Code -
