Home /Products/Multi Axis Load Cell/Machine tools XJC-ZL-39.6 strain gauge voltage load cell 1kg 20kg

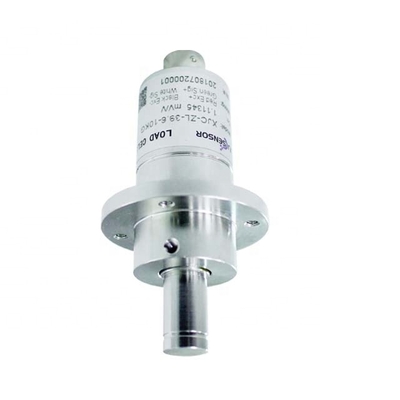

Machine tools XJC-ZL-39.6 strain gauge voltage load cell 1kg 20kg

5 Pieces
MOQ
$168.00(5 - 49 Pieces) $150.00(>=50 Pieces)
Price
Machine tools XJC-ZL-39.6 strain gauge voltage load cell 1kg 20kg
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: XJC-ZL-39.6
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Digital Sensor, 700±5Ω
Pressure Range: 1,5,10,20KG
Accuracy: 0.1%FS
Application: Machine Tools
Power Supply: 5-10VDC
Material: Stainless Steel
Product Name: Tension Load Cell
Certificate: ISO9001
Warranty: 12 Months
Item: XJC-ZL-39.6
Basic Infomation
Certification: ISO9001
Model Number: XJC-ZL-39.6
Payment & Shipping Terms
Packaging Details: Standard exporter carton packing (Other packing requirement accept upon further request.
Supply Ability: 3000 Piece/Pieces per Month
Product Description

XJC-ZL-39.6 Customized Range OEM Tension Load Cell











Product Description

 XJC-ZL-39.6LW high-precision semiconductor silicon piezoresistive principle

Can meet force measurement in the range of 0-50Kg

Stainless steel ,sealed wearing ,oil ,water ,corrosion resistance

Plastic package ,pressure-bearing ,easy to install and flexible

Principle of the semiconductor

Small size ,beautiful appearance

High frequency dynamic response

Customizable ,IP 64 protection





Applications

Automotive ,medical ,robot ,electric ,mechanical equipment ,automation equipment ,ETC .

Force measurement in small space installation ,such as feeling tester for keyboard switch ,compression force measurement for hot and cold lamination machine ,and grasping force measurement for robotic hands.





Technology specification

Capacity

1-50Kg

Accuracy

0.1%F.S.

Material

Aluminum Alloy

Rated output

1.8±10%mV/V

Recommended excitation

5-10VDC

Maximum excitation

15VDC

Non-linearity

1%F.S.

Hysteresis

0.1%F.S.

Repeatability

0.05%F.S.

Compensated temp range

-10~40℃

Operating temp range

-20~60℃

Insulation

≥5000MΩ/1000VDC

Input impedance

780±20Ω

Output impedance

700±5Ω

Creep (30min)

0.1%F.S.

Zero balance

±2%F.S.

Temp effect on output

0.05%F.S./10℃

Temp effect on zero

0.05%F.S./10℃

Safe load limit

150%

Ultimate load limit

200%

Cable size

Φ4*4M

Life

Full scale more than 1 million times

Ordering guide

Mode

XJC-ZL-39.6

Capacity

Customizable

High

H30:30.0MM

Cable out

L03:3meters

L05: 5meters

Special requirements

Selective filling

Description smart modules

T:Teds
