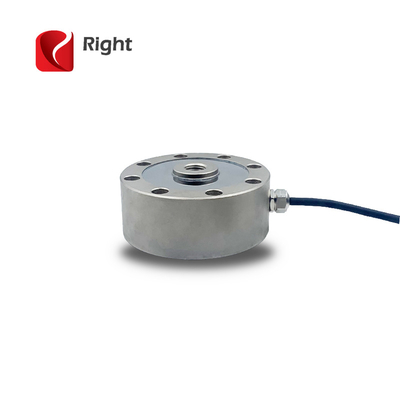

Model T312 Pancake Load Cell (Tension Base).
The Pancake Load Cell (Fatigue Rated) is designed for tension and compression applications. It is available in alloy steel for lower capacities (0.2t – 10t) and 17-4 Stainless Steel for higher capacities (15t -60t).
This Pancake Load Cell (Fatigue Rated) offers high accuracy. It has Nonlinearity of ±0.1%, an Operating Temperature of -60°F to 200°F, and Deflection of 0.002” to 0.003” nominal. The standard Pancake Load Cell (Fatigue Rated) can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery.
Model Features
•Low profile design
•Available in both tension and compression
•Utilizes metal foil strain gauge technology
•Highly resistant to off-axis loading
Specifications | ||
Capacity | 0.1,0.2,1,2,3,5,10,15,20,25,30,50,60t | |
Rated output | 2.0±1%mV/V（50-500kg ,50-60t） 3.0±1%mV/V（1,30kN） | |
Zero balance | ±1% F.S. | |
Non-linearity | 0.03%F.S. | |
Hysteresis | 0.03%F.S. | |
Repeatability | 0.03%F.S. | |
Creep(30min) | 0.03%F.S. | |
Temp.effect on output | 0.02%F.S./10℃ | |
Temp.effect on zero | 0.02%F.S./10℃ | |
Input impedance | 780±10Ω | |
Output impedance | 700±5Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~40℃ | |
Operation temp range | -10~70℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ5×6000mm | |
Material | aluminum alloy and stainless steel | |
Cap（t） | A | B | C | D | E | F | G | H | M |
0.1,0.2,1,2,3,5 | 105 | 75 | 32 | 34 | 89 | 26.8 | 7.5 | 37 | M16×1.5 |
10,15,20,25 | 120.6 | 83 | 39 | 41 | 101.8 | 30.5 | 8.5 | 53.5 | M32×1.5 |
30 | 141 | 96.9 | 50.4 | 50.8 | 116.8 | 39.8 | 11 | 57.2 | M40×1.5 |
- Load Direction -
- Wiring Code -
