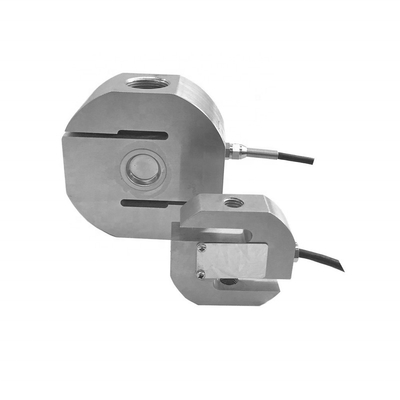

Crane Scale Tension And Compression S St Type Load Cell For Crane Scale

1.0 piece
MOQ
Crane Scale Tension And Compression S St Type Load Cell For Crane Scale
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ZYST
Type: Load Cell
Usage: Crane Scale
Theory: Resistance
Output: 2.0±0.002mV/V
Description: Load Cell
Capacity: 20kg~1t
Sensitivity (Cn): Load Cell: 2.0±0.002mV/V
Accuracy: C3
Input Resistance: 400±20Ω
Output Resistance: 352±3Ω
Excitation Voltage: 5~12VDC
Insulation Resistance: 5000MΩ
IP Class: IP67
Material: Alloy Steel, Stainless Steel
Warranty: 1 Year
Basic Infomation
Model Number: ZYST
Payment & Shipping Terms
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 300 Piece/Pieces per Day
Product Description
Product Description
Rated capacity
L
W
H
H1
T
C
20kg~150kg
70
12
64
24
M8
Φ74
200kg~500kg
70
20
64
24
M12
Φ74
700kg~1t
70
25
64
24
M12
Φ74
1.2t~5t
88
32
90
38
M20
Φ94
7.5t
88
40
90
38
M24
Φ94
10t
110
50
110
46
M30X2
Φ118
Specification
