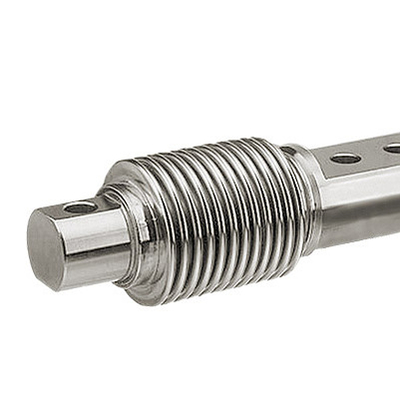

Pressure Sensor HLBHW Bellows Type Sensor Measuring Tension Force Cell

1 Piece
MOQ
$50.00(1 - 9 Pieces) $45.00(10 - 49 Pieces) $40.00(>=50 Pieces)
Price
Pressure Sensor HLBHW Bellows Type Sensor Measuring Tension Force Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Load Cell
Model Number: HLBHW
Usage: Pressure Sensor
Theory: Resistance Sensor
Output: Analog SENSOR
Capacity: 10/100/300/500/1000kg
Output Sensitivity: 1.0-2.0±0.002 Mv/v
Insulation Resistance: ≥200 MΩ(100VDC)
Safe Overload: 150 %F.S
Operating Temp. Range: -25~+70 ℃
Operating Voltage: 5~12V
Material: Alloy Stell
Basic Infomation
Model Number: HLBHW
Payment & Shipping Terms
Product Description
Product Description
Specification
item
value
Type
Load Cell
Model Number
HLBHW
Place of Origin
China
Shanghai
Brand Name
TM
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Analog SENSOR
Capacity
10/100/300/500/1000kg
Output sensitivity
1.0-2.0±0.002 mv/v
Insulation resistance
≥200 MΩ(100VDC)
Safe overload
150 %F.S
Operating temp. range
-25~+70 ℃
Operating voltage
5~12V
Material
Alloy Stell
This sensor adopts cantilever shear structure, bellows seal, nitrogen filling, has anti-deviation, anti-side ability, good dust,stable performance, easy installation and other advantages, used for all kinds of tensile force and compression force measurement,widely used in hopper scale, belt scale and other electronic weighing instrument conversion.
Packing & Delivery
Company Profile
Tuomin Sensor Technology is a company specializing in high-end position sensors and automotive motor drive control systems, global OEM and aftermarket suppliers, the company mainly provides the most complete range of innovative drive visibility products and displacement, position control sensors to provide solutions for the industrial and leisure vehicle markets. We tend to be a professional team dedicated to creating profits for all our customers, achieving sustained growth, and constantly exceeding customer expectations. Over the past 20 years, our position sensors and automotive motor drivers have been widely used in telecommunications, medical, new energy, railway, aviation, national defense, aerospace and other fields, serving more than 1000 households around the world. All the automotive motor drive and position control systems provided by our Tuomin sensor technology provide users with quality assurance, and strictly implement the quality management system ISO9001-2015 and GJB9001B-2009 (national military standard) in the production process to ensure that every motor and position sensor meets the customer's quality requirements.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2020,sell to Africa(15.00%),South Asia(10.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Transfer Case Motor,linear position sensor,angle position sensor,linear displacement senso,Headlight Motor

4. why should you buy from us not from other suppliers?
Tuomin Sensor Technology is a company specializing in high-end position sensors and automotive motor drive control systems, global OEM and aftermarket suppliers, the company mainly provides the most complete range of innovative drive visibility products .

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
