Sales points/ Focus :
*Quality always comes first
*Reasonable Prices
*OEM service provided
*Responsible after-sales service
*Aiming to get repeat orders from 80%customer after the trial orders
*Making progress with customers together
1, high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface
2 simple structure , convenient to install and maintenance
3 high comprehensive precision
4 compact structure
5 low setting height
6good long -term stability

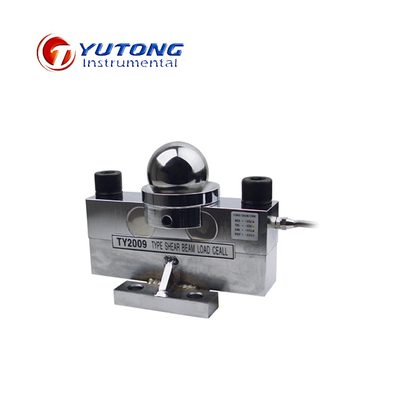

Different Shear beam type optional
Dimension for different capacity
| capacity( t) | D1 | D2 | L1 | L2 | L3 | B1 | B2 | H1 | H2 | φ |
| 7.5~10 | φ 98 | φ 30 | 80 | 125 | 240 | 100 | 135 | 199.9 | 11 | φ 18 |
| 15~30 | φ 98 | φ30 | 80 | 125 | 240 | 100 | 135 | 229.3 | 11 | φ 18 |
| 50 | φ 98 | φ 40 | 124 | 160 | 340 | 124 | 160 | 251.3 | 11 | φ 21 |
PERFORMANCE CHARACTERISTIC
HMD2009,,,..
| MODEL | HMD2009 | |
| COMPREHENSIVE ERROR | C3 | |
| OUTPUT SENSITIVITY mV/V | 2.0±0.25% | |
| NONLINEARITY %F.S. | ±0.02 | ±0.03 |
| REPEATABILITY %F.S. | 0.02 | 0.02 |
| HYSTERESIS %F.S. | ±0.02 | ±0.03 |
| CREEP (30min) %F.S | ±0.02 | ±0.03 |
| TEMP. EFFECT ON ZERO %F.S/10°C | ≤0.002 | ≤0.003 |
| TEMP. EFFECTOUTPUT %F.S/10°C | ≤0.002 | ≤0.003 |
| ZERO OUTPUT %FS | ±1 | ±1 |
| INPUT RESISTANCE Ω | 780±30 | |
| OUTPUT RESISTANCE Ω | 700±3 | |
| INSULATION RESISTANCE MΩ | ≥5000 | |
| EXCITATION VOLTAGE V(DC/AC) | 5~12 | |
| OPERATION TEMP. RANGE °C | -30~+80 | |
| OVERLOAD CAPACITY %F.S. | 150 | |
| CAPACITY | 10t~50t | |
| IP67 | ||
Recent orders
Load cells
with 20 years experiences,We can design and manufacture of hundreds of different kind of load cells:analogy load cell, high temperature load cell, digital load cells and so on, Most of load cells have patent,We guarantee the high quality with competitive price.
QC Team :
QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Certificated Approval :
EWC, CE, WSF, ROHS,We will get the OIML soon...
Gland type optional
Contact
We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.
My wechat and whatsapp:+8613685723918
Skype: jackyq88
If you want to know more information, please contact us without hesitate.
1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.
2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.
3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.
4.How long can I expect to receive my goods after I place an order?
Our production time is always 25 days after pre-production sample confirmation.
5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.
6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.
7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
| Contact Person : | Jessy |
|---|
