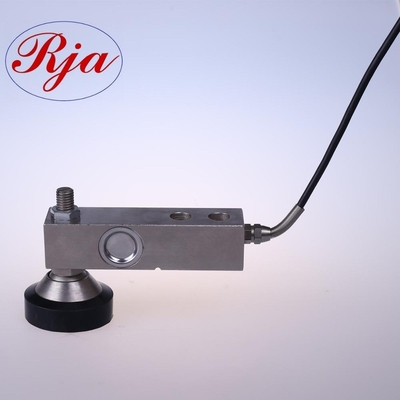

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial aeras. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.
|
Capacity |
T |
0.25/0.5/1/1.5/2.5/3/5/10 |
||
|
Sensitivity |
mV/V |
2.0±0.15 |
||
|
Combined Error |
%FS |
|
0.01 |
0.02 |
|
Creep |
%FS(15min) |
|
0.01 |
0.02 |
|
Input Resistance |
Ω |
380±20 |
||
|
Output Resistance |
Ω |
350±10 |
||
|
Insulation Resistance |
M Ω |
≥5000(50VDC) |
||
|
Zero Balance |
%FS |
±1 |
||
|
Temperature Effects Span |
%FS/10°C |
0.02 |
||
|
Temperature Effects Zero |
%FS/10°C |
0.017 |
||
|
Rated Temperature Range |
°C |
-10~+60 |
||
|
Operating Temperature Range |
°C |
-20~+80 |
||
|
Proposed Excitation Voltage |
V |
6~12 |
||
|
Allowed Excitation Voltage |
V |
3~15 |
||
|
Safe Overload |
%FS |
120 |
||
|
Ultimate Overload |
%FS |
150 |
||
|
Protection |
IP65 |
|||
|
Material |
Aluminum Alloy |
|||
Weighing sensor load cell, according to its different working conditions, the installtion structure are also different, load cell can withstand more than 1.5 times load or stress pull. load cell generally adopts screw bearing, if when the capacity more than 1t, Suggest user adoption of a certain structure partial load resistance installation (flange or fixed module), instance as shown below:
