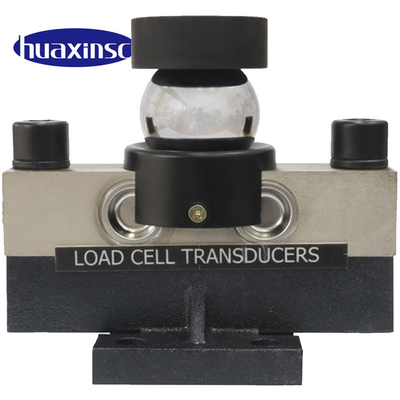

The steel ball and indenter structure can be automatically reset and adjusted. High precision, high reliability, good stability; easy installation and good interchangeability. It has a good moisture-proof seal (adhesive seal and laser welding seal are selected), adapt to harsh working environment. It can be used in various electronic truck scales, railway scales, hopper scales and various special scales, suitable for various fields of weight and force measurementItem level C3 UNIT
Rated load 30t
Rated output 2±0.002% mv/v
Comprehensive error ±0.02% ±% of rated output
Output temperature influence ±0.02% ±% of rated output/oC
Zero temperature influence ±0.02% ±% of rated output/oC
Zero balance ±1%F.S ±% of rated output
Input impedance 775±5 Ω
Output impedance 702±2 Ω
Insulation resistance ≥5000 MΩ
Safe overload rate 150%F.S% of rated capability
Limit overload rate 300%F.S% of rated capability
Operating temperature range (-30~+80)oC oC
Recommended working voltage 5~18 V (AC or DC)
Maximum operating voltage 24 V (AC or DC)
Material Alloy Steel Alloy Steel
Protection grade IP67/IP68
Q1:what about the Product quality?
(1) Every one keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process,Quality control department specially responsible for quality checking in each process.
(2) In addition, our products are also certified by third-party testing organizations.ISO CE OIML.
Q2:What is the delivery time?
A:3-15 days after payment
Q3:what is the MOQ?
A:1 set and we are a manufacturer,and we can provide the competitive price and good quality.
Q4: Does your company accept customization?
We have excellent design team, and we accept OEM.
Q5:How about the payment?
A:supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments,Trade assurance for orders
