TEM-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, TEM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.

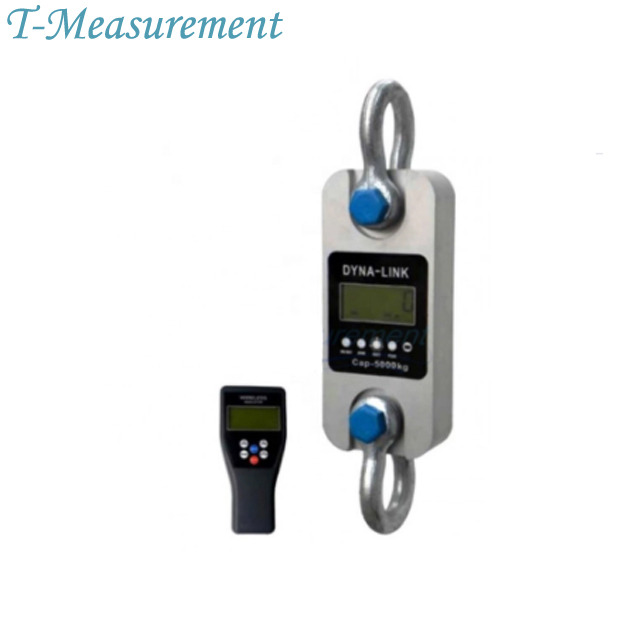

5000 kg Electronic Industry wireless dynamometer hanging load cell digital crane scale
Basic specification of dynamometer
Body Display | 25mm (1’’) 5digits LCD with backlight | Ultimate Load | 400% F.S. |
Indicator Display | 25mm (1’’) 5digits LCD with backlight | Battery Life | ≥50 hours |
Power on zero range | 20% F.S. | Ultimate Load | 400% F.S. |
Manual Zero Range | 4% F.S. | Body Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
Tare Range | 20% F.S. | Indicator Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 |
Stable Time | ≤5 seconds | Operating Temp. | - 20℃ ~ + 50℃ |
Overload Indication | 100% F.S. + 9e | Operating Humidity | ≤85% RH under 20℃ |
Max. Safety Load | 125% F.S. | Wireless Distance | Min. 80m(default) [200m(optional)] |
Packing &Delivery of dynamometer
