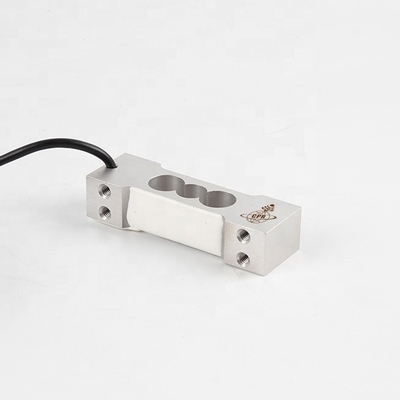

Counting Scale / Single Platform Load Cell Scale Weighing Electronic Weight Sensor Scale CPR39 Single Platform Last Stage Load Cell

1 Piece
MOQ
$28.00(1 - 4 Pieces) $25.00(5 - 49 Pieces) $23.00(50 - 99 Pieces) $21.00(>=100 Pieces)
Price
Counting Scale / Single Platform Load Cell Scale Weighing Electronic Weight Sensor Scale CPR39 Single Platform Last Stage Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Counting Scale / Single Point Load Cell Platform Scale Weighing Sensor
Model Number: CPR39
Type: Load Cell
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Description: Single Point Parallel Beam Sensor
Capacity: 0-25kg
Application: Compact Scale Thin Weighing Scale
Material: Aluminum Alloy Load Cell
Rated Output: 1.0 ± 0.1, 2.0 ± 0.2 Mv/v
Non-linearity: ±0.02% F.S
Keywords: Strain Gauges Sensor Single Point Parallel Beam Load Cell
Basic Infomation
Model Number: CPR39
Payment & Shipping Terms
Product Description
Company Profile
-National high-tech enterprise, R&D and manufacturing capabilities Shenzhen Cooperation Sensors Instruments Co., Ltd., was origined from 1995, recognized as high-tech enterprise in the design and manufacture of sensor technologies. There are 80% professional technicians in our total staff so that strong technology support could be offered to our clients. Our factory has modern sensor production line using global advanced manufacturing technology and management concepts to ensure our various types of sensors and detection instruments qualifies different market requirements. We look forward to establishing a long term and reliable trade cooperation on the principles of win-win. -Product categories and market services, agents of well-known foreign brands Our leading products include pressure sensors, miniature load cells, digital sensors, microcontroller multi-function miniature pressure display indicator, all-electric injection molding machine series sensors, intelligent GPRS module sensor signal transmission, intelligent fire-fighting instruments, software engineering support etc. Our company's marketing network covers all over 32 provinces of China after nearly 10 years of continuous development with the aim of providing customers with high-quality products and perfect after-sales service. We are also the agent of world well-known brands from Japanese and European, such as Japanese NMB load cell series, pressure sensors and meters, and American TRANSCELL, CELTRON's load cells and meters. Japanese NMB series sensors have been accepted widely in domestic market because of its reliable quality and economic price also as the first choice for national defense and high-precision control product. -Development history and important achievements In 2004, authorized by Japan NMB for long-term operating in China. In 2006, launched into foreign markets successfully. In 2007, became a special distributor of Freescale (formerly MOTOROLA) on pressure sensors. In 2014, our expansion force test system gained a national patent. In 2017, became a strategic partner with Harbin Institute of Technology. In 2018, became a national high-tech enterprise and developed a variety of new energy sensors and software, launched a new product which can monitor expansion force and displacement at the same time. In 2019, the expansion force test system successfully entered the field of new energy vehicles, and the newly developed products are installed distributed force and constant force test systems.

Features & Applications

* Single point load cell
* Aluminum alloy construction
* EMC/FCC/ROHS approved
* High accuracy
* High stability
* Easy to install
* Colorless anodizing
* Glue seal
* Recommended using size 120*120mm
* Protected against corrosion by nickel-plated treatment
* Suitable for low capacity compact scale small electronic scales like price scale, weighing scale, thin weighing scale, Tank Packing Electronic pricing Weight scale Multihead weigher load cell etc.

Capacities: 500g, 1kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 25kg
Dimensions
Capacity
0.5kg, 1kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 25kg
Specifications
Capacity
0~25kg
Zero balance
1%R.O
Rated output
2.0 ±10% mV/V
Creep
0.1~0.05%R.O./30min
Non-linearity
0.05~0.1 % R.O.
Temp.effect on zero
0.1%R.O./10℃
Hysteresis
0.05~0.1 % R.O.
Temp.effect on output
0.1%R.O./10℃
Repeatability
0.05~0.1 % R.O.
Input impedance
350 ± 30Ω
Temperature
- 20 ~ 80ºC
Out impedance
350 ± 5Ω
Compensated temp range
-10℃~60℃
Insulation
≥5000MΩ/50VDC
Recommended excitation
5~10VDC
Safe overload
120% R.C.
Maximum Excitation
15VDC
Ultimate overload
150% R.C.
Cable
4-core Shielded cable Ø3*3m
Protection class
IP54
Q1: Are you trading company or manufacturer ? A: We are factory. Q2: Can you print our brand on the product? A: Yes, Of course. It can make customer’s brand logo. Q3: How to place an order ? Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters. Q4: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards. Q5: What is lead time? If we have it in stock, we can ship it to you within about 7 working days. If we don’t have it in stock, the lead time will be 2-4 weeks. The specific time needs to be negotiated. Q6: What is the payment terms? T/T, Western Union, L/C, Paypal, etc. Escrow alibaba is acceptable. Q7: What is the express delivery? DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: express delivery, by sea, by air transport. If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice. Q8: What is the quality guarantee? Quality guarantee: 12 months. If the product has quality problem within 12 months,if there is quality problem which cuased by our side, you can send back goods for repair and pay the freight cost at your side. or we can send replacement.
