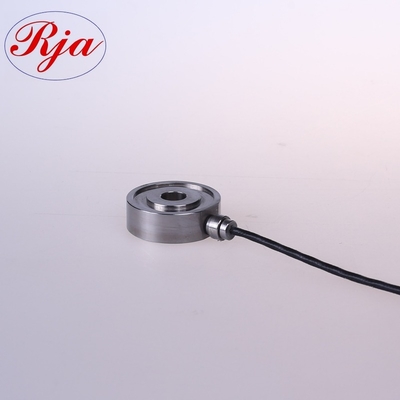

50kg 100kg 200kg 300kg Spoke Type compression loading Load Cell
We product all kinds of load cell , Pressure sensor, S type load cells, miniature sensor, parallel beam load cells, single shear beam load cell, doulble shear beam type load cell, spoke type load cells, pressure transmitter, ultrasonic sensor, column type load cells, digital load cell, elevator sensor, temperature sensor.ect. As your requirement,We choose suitable model for you
Parameters:
Range | kg | 50/100/200/300 |
Sensitivity | mV/v | 1.5±0.15 |
Combined error | %FS | 0.05 |
Creep | %FS/30min | 0.05 |
Input resistance | Ω | 760±40 |
Output resistance | Ω | 700±10 |
Insulation resistance | MΩ | ≥5000(50VDC) |
Zero balance | %FS | ±1 |
Temperature effects balance | %FS/10°C | 0.02 |
Temperature effects span | %FS/10°C | 0.017 |
Rated temperature range | °C | -10~+60 |
Operating temperature range | °C | -20~+80 |
Purpose excitation voltage | V | 6~12 |
Allowed excitation voltage | V | 3~15 |
Safe overload | %FS | 120 |
Ultimate overload | %FS | 150 |
Protection |
| IP65 |
Material |
| Stainless Steel |
| Applications |
1)S type load cell /Tension force sensor : Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.
2)Miniature sensor/Micro load cell: Suitable for electronic balance, electronic platform scale and other electronic weighing devices.
3)Parallel beam load cell : Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices
4)Single shear beam load cell : Suitable for electronic platform scales, truck scale, floor scale , hopper scale and other electronic weighing devices.
5)Spoke type load cell :Suitable for electronic truck scale,truck scale,hopper scales and other electronic weighing devices
6)Column type load cell : Suitable for platform scale, vehicle scales, hanging scale and industrial weighing system.
