1. Rated Force Range: 5-70kN, 100-250kN, 300-500kN, 600-1000kN
2. Cable length: 3m
3. OEM: Acceptable
4. Certification: ISO9001
5.Packing: See the details

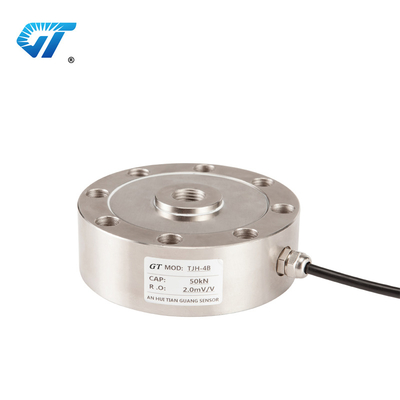

Product Name | Spoke type pressure force load cell (5-70kN) |
Accuracy | 0.05%FS |
Sensitivity | 2.0mV/V |
Non-linearity | 0.03% |
Relative creep over 30 min | 0.05% |
Temp. influence on sensitivity | 0.05%FS/10℃ |
Temp. influence on the zero signal | 0.05%FS/10℃ |
Zero output | ±1.0%FS |
Input resistance | 380±10Ω or 750±15Ω |
Output resistance | 350± 3Ω or 700 ± 5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Nominal (rated) temperature range | -10~+45℃ |
Reference temperature | 23℃ |
Reference excitation voltage | 10V DC |
Limit force | 150% |
Breaking force | >300% |
Material | Alloy Steel or Stainless Steel(made in order) |
level of protection | IP66(IP67-Stainless Steel) |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
Mass | 2.0kg |
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
Weighing module
Load cell transmitter
Weighing indicator
Packing Details : Standard export packaging,carton box,PE cotton
Delivery Details : 7-30 days after payment
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 20 years GT has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
