Home /Products/Single Point Load Cell/10kg to 700kg Schenck PWS Platform Scale Stainless Steel Single Load Cell

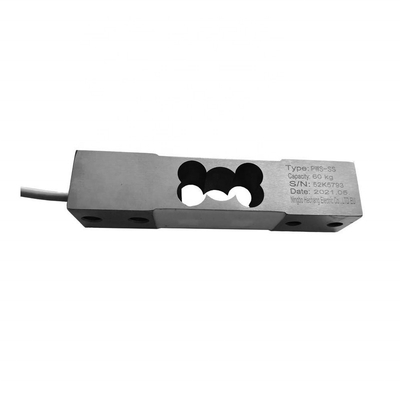

10kg to 700kg Schenck PWS Platform Scale Stainless Steel Single Load Cell

1.0 piece
MOQ
10kg to 700kg Schenck PWS Platform Scale Stainless Steel Single Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: PWS-SS
Type: Load Cell
Usage: Platform Scale
Theory: Resistance
Output: 2.0±0.002 MV/V
Description: Load Cell
Capacity: 10kg To 700kg
Sensitivity (Cn): Load Cell: 2.0±0.002 MV/V
Accuracy: 0.03%F.S
Input Resistance: 400±20Ω
Output Resistance: 352±3Ω
Excitation Voltage: 5~12VDC
Insulation Resistance: 5000MΩ
IP Class: IP65
Material: Stainless Stell 17-4PH
Warranty: 1 Year
Basic Infomation
Model Number: PWS-SS
Payment & Shipping Terms
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 300 Piece/Pieces per Day
Product Description
Product Description
Capacity
10kg
30kg
60kg
100kg
150kg
300kg
500kg
700kg
A
8.5
8.5
8.5
8.5
8.5
8.5
10.4
10.4
B
M8
M8
M8
M8
M8
M8
M10
M10
C
23.8
30.7
30.7
30.7
30.7
30.7
36.5
36.5
Specification
1. Capacitis: 10kg~700kg; 2. Single point stainless steel load cell; 3. IP65 protection; 4. Material: stainless steel 17-4PH; 5. Interchange with Schenck PWS.
Company Profile
Ningbo Zhengyan Technology specializes in the research, development, design and production of various high precision force transducers, load cells, torque sensors for multiple applications over 15 years. The products are for a wide range application, such as weighing systems, force measurement, load limitation, process control, oil and gas industry, chemical industry, food and medical industry and so on. We can help you to solve your problem either with one of the special load cells already in production or by the developing a custom-made product. Designing and developing new quality solutions is our specialty.
Packing & Delivery
Supply Ability :
500 Piece/Pieces per Day
Neutral packing or according to customers' requirements.
FAQ
1. who are we? We are based in Zhejiang, China, start from 2016,sell to North America(15.00%),Western Europe(20.00%),South America(10.00%),Northern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Oceania(5.00%),Eastern Europe(10.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Load Cell,Force transducer,Torque transducer,Load Pin,Weighing Sensor 4. why should you buy from us not from other suppliers? Ningbo Zhengyan Technology Co.,LTD has specialized in the research, development, design and production of various high precision force transducers, load cells, load pins, torque sensors for multiple applications over 15 years. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
