Name: Weight GPB100 C3 Buy High Accuracy China Unique Load Cell Sensor 50kg
Brand: Weight GPB100 C3 Buy High Accuracy China Unique Load Cell Sensor 50kg
SKU: GPB100-C3
Price: 1 USD
Availability: InStock
Rating: 4.9 (161 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: GPB100-C3

Type: Load Cell

Usage: Weight

Theory: Resistance Sensor

Output: Mv/v

Description: GPB100-C3

Rated Capacity: 3,6,10,15,20,30,40,50(kg)

Accuracy Class: C3

Comprehensive Error: 0.02%

Rated Output: 2.0Â±0.1mV/V

Zero Balance: Â±5%F.S

Linearity Error: Â±0.02%F.S

Repeatability Error: Â±0.015%F.S

Hysteresis Error: Â±0.015%F.S

Creep: 0.03%/30min

Name: GPB100 C3 Buy High Accuracy China Single Point Load Cell Sensor 50kg

Basic Infomation

Model Number: GPB100-C3

Payment & Shipping Terms

Packaging Details: Standard export packaging

Supply Ability: 500 Piece/Pieces per Month GPB100 C3 Buy High Accuracy China Single Point Load Cell Sensor

Product Description

Recommend Products

Product Description

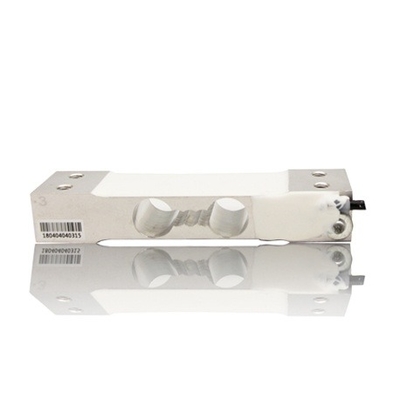

What is GPB100-C3 Single Point Load Cell?

GPB100-C3 single point load cell is for electronic counting scales, smart shelves, etc which needs high quality weighing condition. GPB100-C3 is our new arrival product, made of aluminum alloy material, and we recommend the max platform of it is 250×350mm.

Details Images

Specification

Rated Capacity	3, 6, 10, 15, 20, 30, 40, 50kg
Accuracy class	C3	Compensated Temp.Range	-10℃～+40℃
Comprehensive error	0.02%	Recommended Excitation	5～12VDC
Rated output	2.0±0.1mV/V	Maximum Excitation	18VDC
Zero Balance	±5%F.S	Operating Temp.Range	-20℃～+60℃
Linearity Error	±0.02%F.S	Safe Overload	150%F.S
Repeatability Error	±0.015%F.S	Ultimate Overload	200%
Hysteresis Error	±0.015%F.S	Insulation Resistance	≥2000MΩ(50VDC)
Creep	0.03%/30min	Cable length	Φ4mm×0.4m
Input Resistance	405±10Ω	Cable	4-Wire Shielded Cable
Output Resistance	350±3Ω	Protection Class	IP65
Temp.Effect on Output	0.03%/10℃	Wiring code	Exc+：Red Exc-：Black
Temp.Effect on Zero	0.05%/10℃	Wiring code		Sig+：Green Sig-：White

Dimension
