Home /Products/Load Cell Parts/High Quality Mono Solar Panels 200W Price Portable Solar Power System SKOO Solar Panel Manufacturers Panel Solar Modules

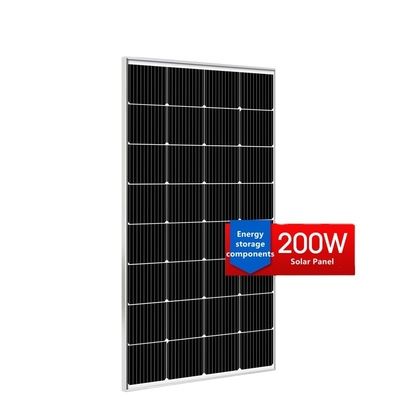

High Quality Mono Solar Panels 200W Price Portable Solar Power System SKOO Solar Panel Manufacturers Panel Solar Modules

100.0 Pieces
MOQ
High Quality Mono Solar Panels 200W Price Portable Solar Power System SKOO Solar Panel Manufacturers Panel Solar Modules
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SK-PV-200W
Cell Size: 182mm
Type: PERC
Panel Dimensions: 1290*760*30mm
Panel Efficiency: 20.4%
Warranty: 10YEARS, 10 Years For Machinery Warranty
Band Name: SK
Material: Monocrystalline
Efficiency: 20.4%
Front: 5400PA
Junction Box: IP67 2*bypass Diode
Back: 2400PA
Frame: Anodized Aluminium Alloy
Backsheet: White
Application: Solar Power System
Basic Infomation
Model Number: SK-PV-200W
Payment & Shipping Terms
Packaging Details: Carton box with two pieces and one pack, box+pallet, wooden box
Supply Ability: 1000 Piece/Pieces per Day
Product Description
Product Description
Electrical Parameters at(STC)
Module
Power (W)
Module Efficiency(%)
Voltage at Pmax (Vmp)
Current at Pmax(Imp)
Open Circuit Voltage(Voc)
Short Circuit Current(Isc)
Power Tolerance(W)
SK-PV-200W
200W
20.40%
18.24
10.96
21.80
11.62
±3%
Mechanical Parameters
Solar cell (Type/Size)
MONO (182 mm)
Solar cell number
32PCS (4*8)
Dimension
1290*760*30mm
Weight
10.30KG/PCS
Tempered Glass
3.2mm High Permeability Coated
Frame
Anodized aluminum alloy
Junction Box
IP67、2*bypass diode
Cable
2.5mm², (+)700mm/(-)700mm
Connector
Original MC4/Compatible MC4
Mechanical Load
Front 5400PA/ back 2400PA
Packing
Module Type
SK-PV-200W-32
Carton size
1310*780*75mm
Number
2PCS/CTN
Weight
21KG/CTN
Volume
0.077CBM/CTN
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
FAQ
FAQ Q1. Why choose us? A. We have been producing solar products for over 10 years. we're able to provide good product with good price, as well as good service. Q2. Can I customize the product? A. Abosolutely. We can customize solar power system according to your requirement and make your own brand logo. Also we can the package the products according to your request. We can also accept OEM orders. Q3. Can I have free samples? A. We can offer samples for free for solar light, but the shipping cost shall be paid by your side. Q4. What's the delivery time? A. it depends your order volumn, actually we are able to finish normal order within 20-30days. Q5.How to order? A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
