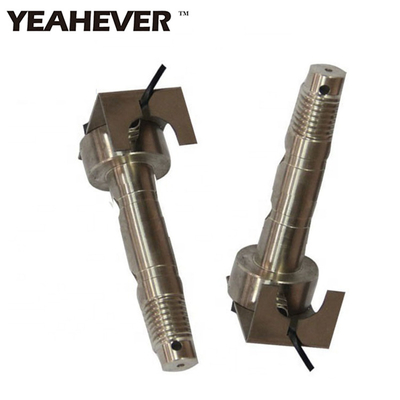

15 ton crane scale features:
Material: Alloy steel or stainless steel
Rated sensitive: 2.0±0.002mv/v
Output signal:0~10V;4~20mA
Application: port, wharf cargo measurement and hoist and lifting equipment safety testing
|
Rated Load |
1~100t |
Insulation resistance |
≥5000MΩ |
|
|
Operation Temp. |
-40~+80°C |
|||
|
Rated output |
2.0±0.002mv/v |
Safe overload |
150%F.S |
|
|
Comprehensive error |
±0.02%F.S |
Ultimate overload |
300%F.S |
|
|
Creep(30min) |
±0.02%F.S |
excitation voltage |
10~12V(DC) |
|
|
Zero balance |
±1%F.S |
Max.excitation voltage |
15V(DC) |
|
|
Temp. Effect On Zero |
±0.02%F.S/10°C |
Protection Class |
IP67 |
|
|
Temp. Effect On Span |
±0.02%F.S/10°C |
Material |
Alloy steel /Stainless steel |
|
|
Input resistance |
400±10Ω |
Cable |
length:6~12m;diameter:6mm |
|
|
Output resistance |
350±5Ω |
Red: Input( +) Green: Output ( +) |
||
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
