Home /Products/Scale Load Cell/PRESSURE SENSOR ESMTS500B-50kg hook sensor, 50kg crane scale load cell, full-bridge load cell

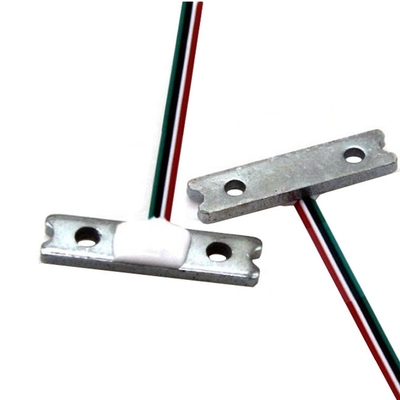

PRESSURE SENSOR ESMTS500B-50kg hook sensor, 50kg crane scale load cell, full-bridge load cell

50 Pieces
MOQ
$1.50(50 - 99 Pieces) $1.20(100 - 499 Pieces) $1.00(500 - 999 Pieces) $0.80(>=1000 Pieces)
Price
PRESSURE SENSOR ESMTS500B-50kg hook sensor, 50kg crane scale load cell, full-bridge load cell
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ESMTS500B-50kg
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Product Name: 50kg Crane Scale Load Cell, Full-bridge Load Cell
Comprehensive Error: 0.3%F.S
Sensitivity: 1±0.2 Mv/v
Nonlinear: 0.3%F.S
Repeatability: 0.3%F.S
Creep: 0.3%F.S
Recommended Excitation Voltage: 3~10V
Overload Capability: 150%F.S
Input Resistance: 1000 ± 5% Ω
Output Resistance: 1000 ± 5% Ω
Basic Infomation
Model Number: ESMTS500B-50kg
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Product Description
Product Description
Specification
 Rated load
50kg
 Operating temperature
 -10 ~ 50 ℃
 Sensitivity
1.0 ± 0.2mv / v
 Zero output
± 1.0mv / v
 Zero temperature drift
 0.3% FS
 Non-linear
 0.3% FS
 Temperature sensitivity drift
0.3% FS
 Lag
0.3% FS
 Insulation resistance:
≥2000MΩ
 Repeatability
0.3% FS
 Excitation voltage
3-10vdc
 Creep
0.3% FS
 Safe overload
 120% FS
 Input resistance
1000 ± 5% Ω
 Output resistance
1000 ± 5% Ω
 Comprehensive accuracy
0.3% FS
Installation Instructions
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
