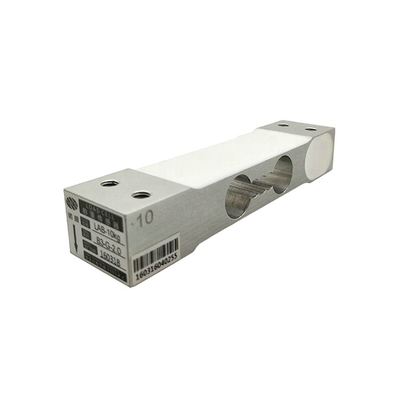

Load Cell For Floor Scales Single Point Load Cell Electronic Weighing Scale
| Single Point Load Cells | |
|
Capacity |
3,6,10,15,20,30,40,50(kg) |
|
Accuracy Class |
G* |
|
Rated output |
2.0±10%mv/V |
|
Zero balance |
±5%R.O. |
|
Linearity Error |
±0.015%R.O. |
|
Hysteresis/Repeatability Error |
±0.01%R.O. |
|
Creep(30 minute) |
±0.02%R.O. |
|
Structure |
Aluminium Alloy |
|
Temperature Compensated For Output |
±0.02%R.O./10°C |
|
Temperature Compensated For Zero |
±0.02%R.O./10°C |
|
Input resistance |
405±10Ω |
|
Output resistance |
350±3Ω |
|
Insulation Resistance |
≥5000MΩ(50VDC) |
|
Temperature Compensated |
-10-+40°C |
|
Operating Temperature Range |
-20-+60°C |
|
Excitation,recommended |
5~12VDC |
|
Excitation,maximum |
18VDC |
|
Safe overload |
150%.R.C |
|
Ultimate Overload |
200%.R.C |
|
Cable,and length |
φ4mm*0.4m |
|
Protection Class |
IP65 |
Feature:
1. Aluminum alloy;
2. High accuracy, OIML R60 approved;
3. Mainly used for price computing scales, counting scales, weighing scales etc;
4. Max.platform size:250*350mm.
